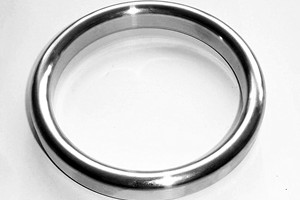

Kaxite Sealing's RX Ring Joint Gasket delivers unmatched sealing reliability in demanding high-pressure and high-temperature applications. Crafted from premium materials with precision engineering, it prevents leaks, ensuring safety and efficiency for industrial users. Experience peace of mind and enhanced performance—choose a gasket that stands out with superior durability and expert design.
Ring Joint Gasket is manufactured by CNC equipment according to ASME B16.20 and API 6A standard.
• R(Oval)Ring joint gasket with oval cross section, suitable for ANSI B 16.5,ASME B16.47, series A flange, can be used in pressures up to 1000 PSI
• R(Octagonal)Ring joint gasket with octagonal cross section are designed for flanges with standard grooves,interchangeable with oval ring joint gaskets on modern octagonal grooved flanges, but has a higher sealing ability.
• RX Ring joint gasket is designed for pressures up to 5,000 PSI. They are interchangeable with R-oval or R-octagonal rings used on API 6B flanges.
• BX Ring joint gasket can only be used with 6BX flanges and 16BX hubs. BX Gaskets are designed for higher-pressure ratings starting at 5,000 lbs. and ending with 20,000 lbs.
Materials
Materials
Hardness (HB)
Temperature(oC)
Soft Iron
90
-60 to 500
Low Carbon Steel
120
-40 to 540
SS304
160
-250 to 540
SS304L
160
-250 to 540
SS316
160
-200 to 815
SS316L
160
-200 to 815
SS321
160
-200 to 870
SS347
160
-200 to 870
SS410
170
-200 to 850
5Cr-0.5Mo
130
-29 to 650
Inconel 600
150
-100 to 1095
Incoloy 825
150
-100 to 1095
Hot Tags: RX Ring Joint Gasket, Ring Joint Gasket Supplier, Custom Sealing Gasket
